Material detail · DMX-HP-105
Polytetrafluoroethylene (PTFE)
PTFE offers the broadest chemical resistance and lowest coefficient of friction of any solid engineering plastic, with a continuous operating range from −200 °C to 260 °C. Pure PTFE has limited wear resistance under load; filled grades (glass, carbon, mica) trade some chemical purity for significantly improved wear life and dimensional stability. FDA-compliant unfilled grades are used widely in food and pharmaceutical processing equipment.
- Family code
- DMX-HP-105
- Grades listed
- 7
- Stock forms
- Rod 3–300 mm
- Docs
- CoC · CoA on request
Grades carried
Grade selection
Grades are listed with the duty each is normally specified against. Food-contact status applies to the individual grade, not to the material family.
7 grades listed
| Grade | Notes | Contact status |
|---|---|---|
| PTFE Virgin Unfilled | Maximum chemical inertness | Industrial |
| PTFE Blue, FDA Compliant | Food and pharma contact | Food / pharma |
| PTFE 25% Glass Filled | Improved wear/creep resistance | Industrial |
| PTFE 25% Carbon Filled | Higher load-bearing, some chemical trade-off | Industrial |
| Rulon® series (multiple grades) | Bearing and wear applications, various colors/formulations | Industrial |
| Fluorosint® series | Ceramic-filled, high dimensional stability | Industrial |
| Turcite® B / Slydway® | Machine tool way surfaces | Industrial |
Trade names are the property of their respective manufacturers and are listed to identify the grades we stock. Availability varies by form and lot — confirm the current stock position before releasing a drawing to production.
Typical properties
Performance envelope
Typical values for unfilled grades at 23 °C. These are indicative for grade selection, not specification limits — certificates of analysis are issued against the shipped lot.
Common applications

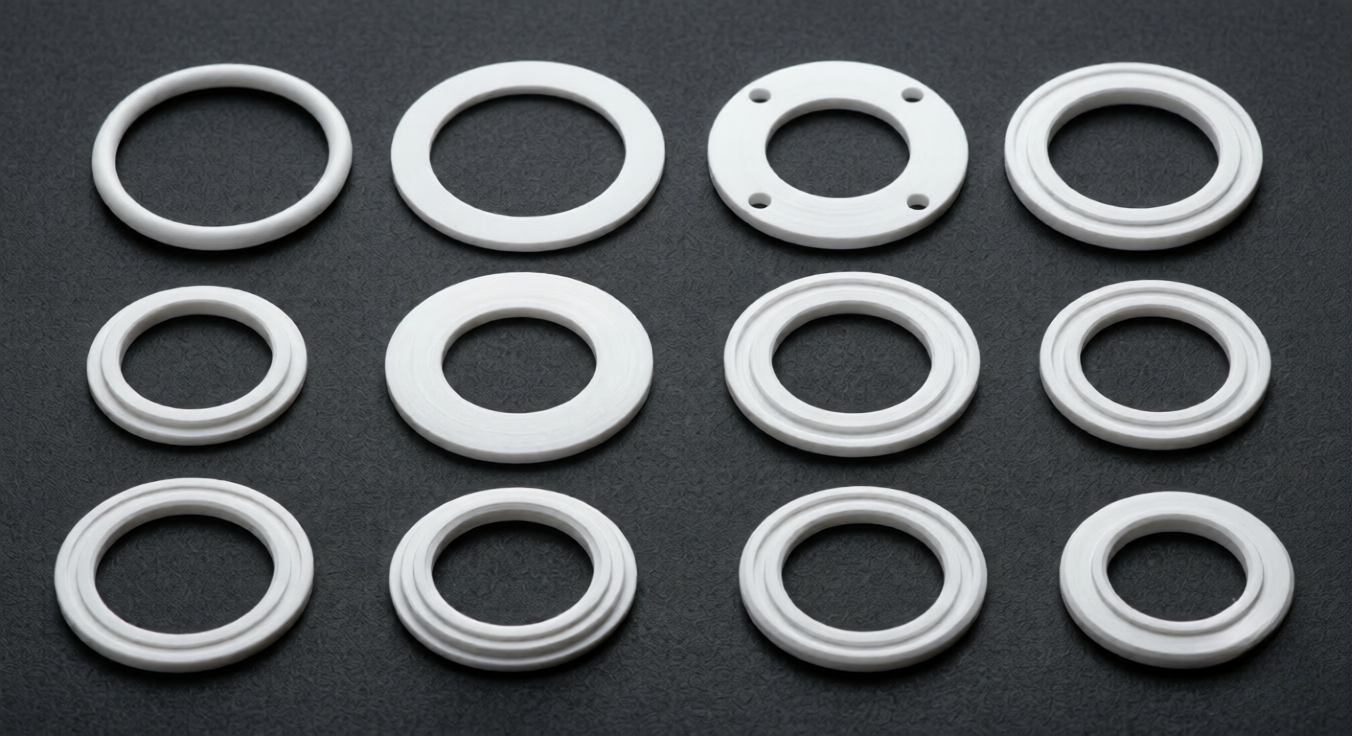

- Gaskets and seals
- Chemical process liners
- Bearing and wear components
- Valve seats
- Pharmaceutical processing equipment
Compliance
Standards available on selected grades
Damrix Plastics is a distributor. The standards below are held by the certified manufacturing partners in our supply chain and apply to specific grades and lots — not to the family as a whole, and not as a Damrix certification.
Every shipment is released with a certificate of conformance and lot-level traceability. Certificates of analysis, FDA food-contact statements and biocompatibility summaries are issued on request against the specific grade supplied.
Common questions
PTFE specification questions
The questions raised most often during grade selection. If your application sits outside these answers, send the operating conditions and we will confirm the grade.
- Is PTFE the same as Teflon?
- Teflon is a DuPont trade name for PTFE; the underlying chemistry is the same, though formulations vary by manufacturer.
- Does PTFE require FDA certification for food use?
- Unfilled, food-grade PTFE is manufactured to comply with FDA food-contact regulations. Filled grades are typically not food-contact suitable — confirm grade selection for your application.
- Why choose filled PTFE over unfilled?
- Filled grades address PTFE's tendency to cold-flow (deform under sustained load) and improve wear resistance, at some cost to chemical purity and friction performance.
Next step
Confirm a PTFE grade for your application
Send the contact status, service temperature, chemical exposure and load duty. We respond with the qualifying grades, the documentation available for each and the current stock position.
